General

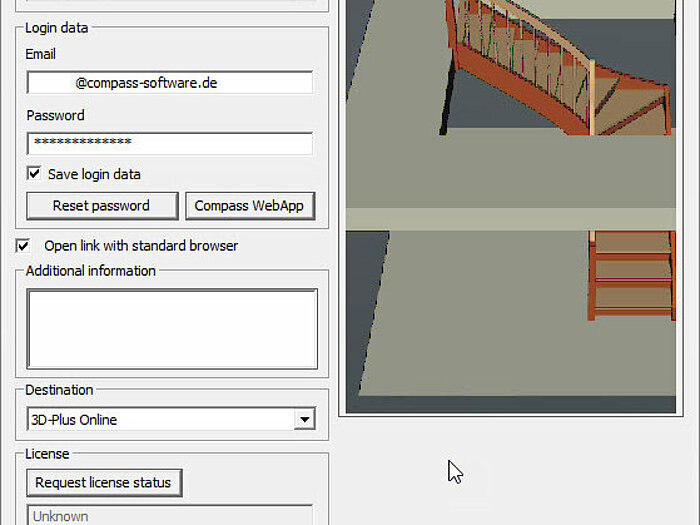

3D Plus Online: Menu points added for passwort recovery + link to WebApp
The “3D Plus Online Upload” dialogue box has been updated to include the “Reset password” and “Compass WebApp” functions. Previously, the link to the WebApp was only available via the user guide, and the “Reset password” function was only accessible via the WebApp’s login dialogue box.

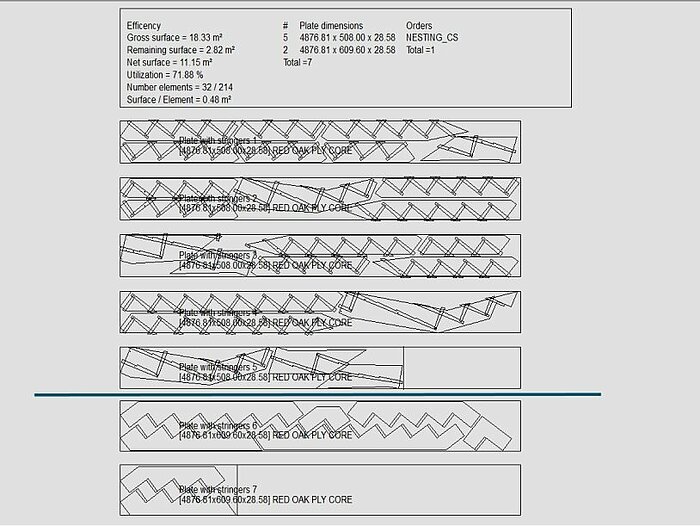

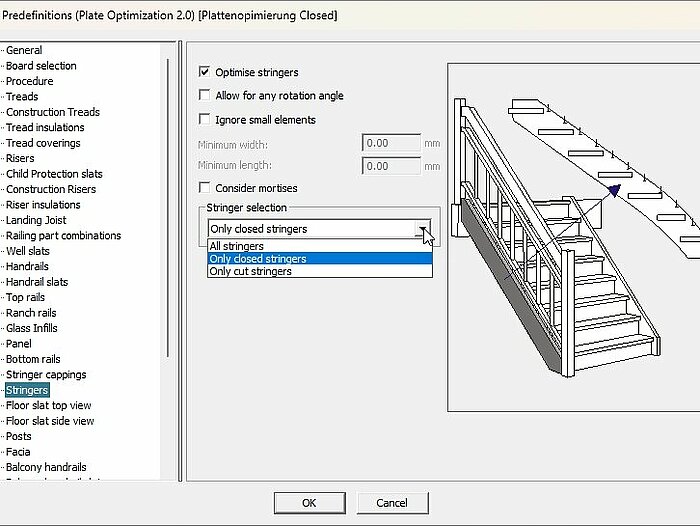

Expansion of PlattenOpt 2.0: Optimisation of closed and open stringers separately
In Plate Optimisation 2.0, the function has been expanded to optimise closed and cut stringers separately. In the default setting, you can now choose whether to optimise all stringers, only the closed stringers or only cut stringers. This means that two default settings can be used to better respond to the specific characteristics of closed and cut stringers. Different panel dimensions, wood types, wood qualities, part distances, etc. can thus be organised effectively. The default setting is ‘Optimise all side panels’. Nothing changes for existing customers. The function must be actively set up.
Stair Design

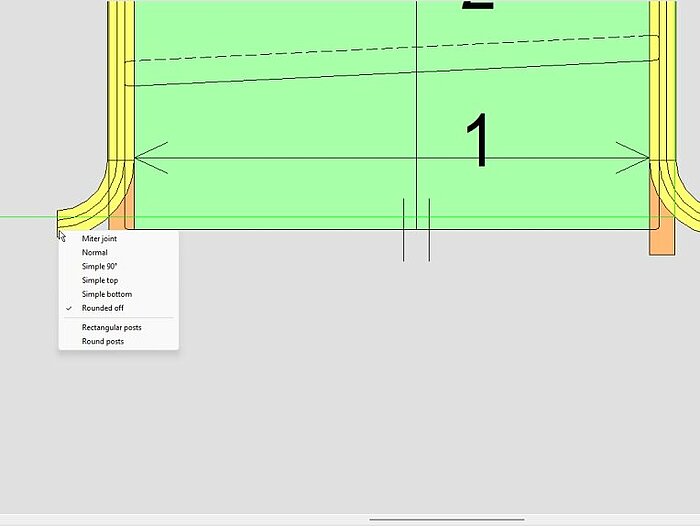

Grund plan, balcony construction: Rounded connection between stairs <-> balcony

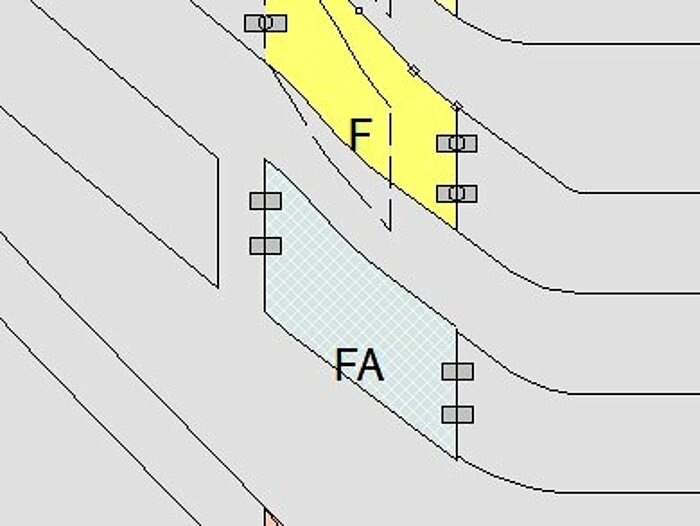

The ‘rounded’ connection has been extended at the start and end of the transition between the staircase and the balcony. The connection is available for handrails, top rails and bottom rails. The ranch rails and glass infills follow the corner connection, if present. Staircases and balcony railings must have the same thickness in the floor plan for this. In the current version, only wreath and wreath with stretched profil are possible here. Dowels, screws with pocket and screws with two pockets can be inserted individually as fittings or via the drilling patterns as connecting elements. The connection must be designed in the height construction. The adjacent running parts are shown as supports.
