Have you seen our Angled Brackets option?

The benefits at a glance:

• Boost efficiency: Automatic drilling patterns and dynamic positioning save time and effort.
• Stay flexible: Different designs and adjustable parameters allow for customised solutions.

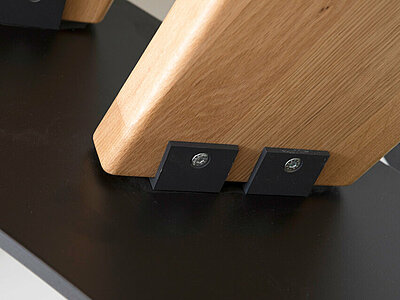

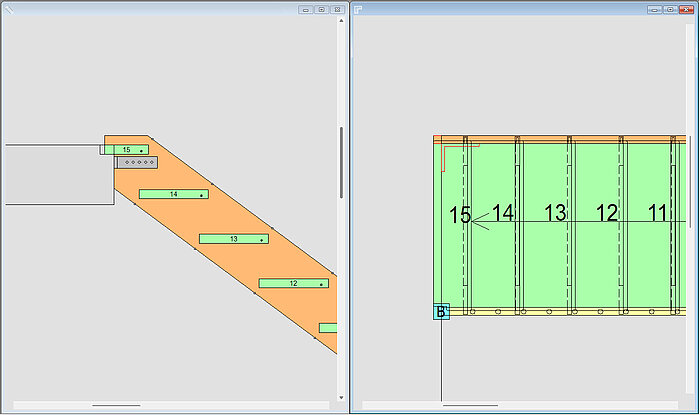

1. HPL stringer fixing clamp at the exit

We have expanded the functionality of the exit fixing clamp. Now, in addition to being mounted at the end of the stringboard, the clamp can also be screwed onto the side, securing thin HPL stringers more firmly to the ceiling edge.

New drilling pattern options allow for even more precise planning:

• Additional positioning options on both the tread and non-tread side.
• Flexible placement methods: Directly in the height construction, via the drilling pattern, or from the predefinition settings.

Angles are now visualised in both plan view and height construction, ensuring maximum planning accuracy.

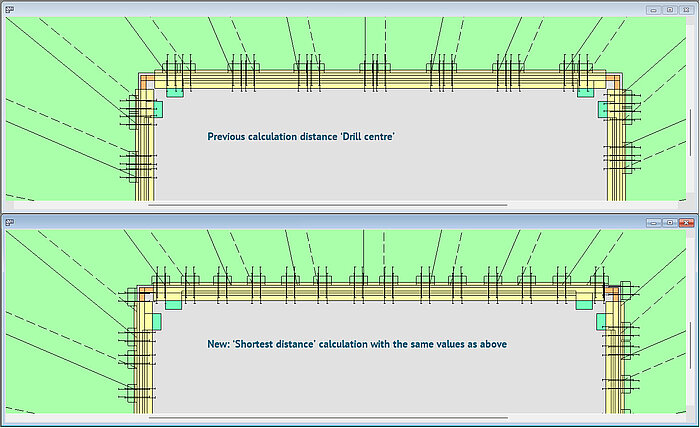

2. Shortest distance to front edge of tread

This improvement prevents clamping elements from shifting out of the tread on winded stairs. It ensures stable, precise positioning—especially when using double angles, angled clamps, or threaded angled clamps.

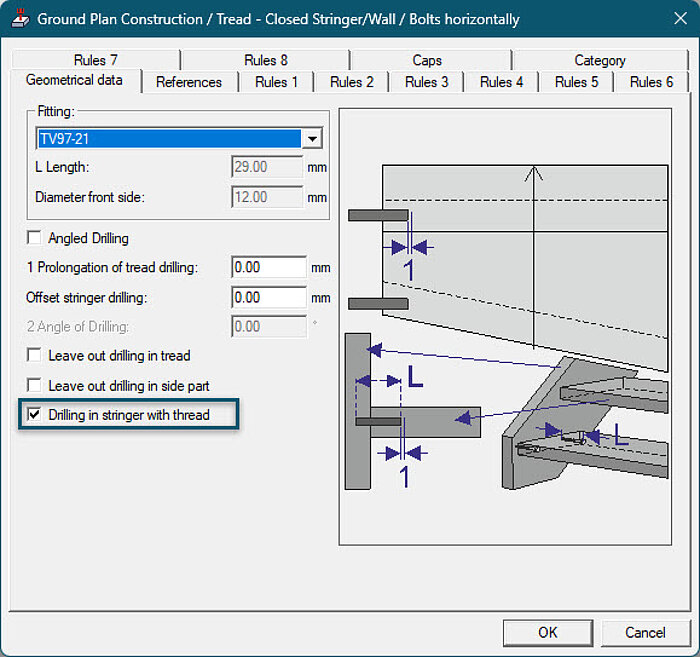

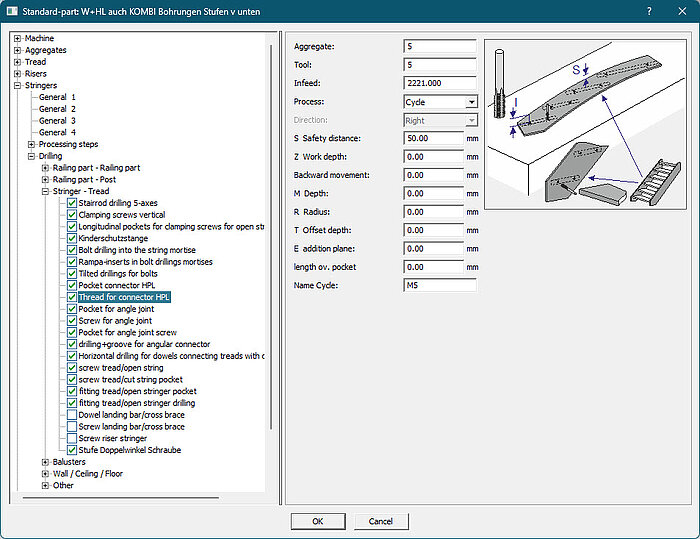

3. Drilling for threaded stringers

To make bolts invisible in RCD stair systems, we have added a new feature for drilling in threaded stringers:

• The drilling pattern is now stored directly in the stringer template.
• The post-processor automatically activates the thread-cutting cycle for HPL connectors.
• The machine mills or cuts the threading directly into the bolt hole, ensuring seamless processing.

This automation saves time, reduces manual intervention, and enhances precision.

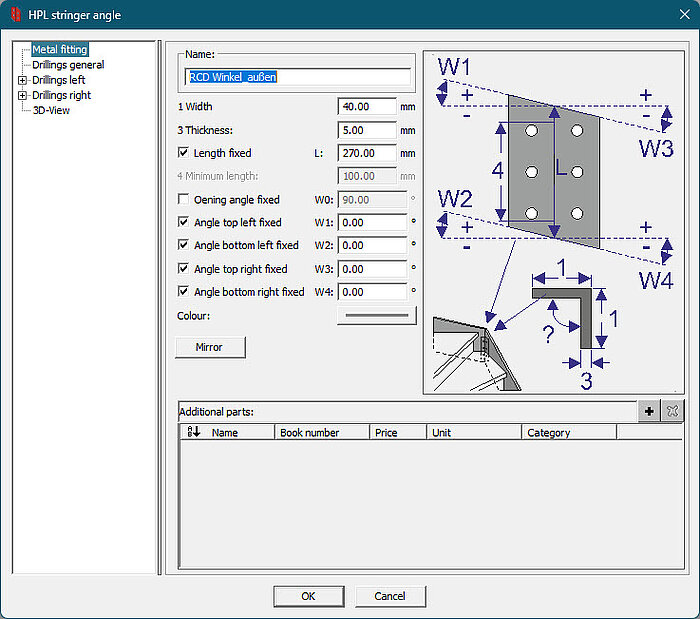

4. Flexible HPL Stringer Clamping

The new HPL stringer angle is a true all-rounder. With freely definable parameters, you can customise dimensions, angles, drilling positions, and details such as threads or countersunk holes.

• Fixed values: Ideal for standard solutions, allowing you to order clamps as stock items.
• Dynamic values: Adapt dimensions flexibly to your design requirements.
• 3D visualisation provides a clear overview. Fixed values are displayed precisely, while dynamic values offer a realistic preview—helping to prevent errors.

Versatile placement options:

• On the tread or non-tread side.
• As a connection in stringer extensions.
• As a wall anchor on fixed components.
• As a corner connection in the floor plan.

Seamless production process:

• Output as a template or DXF file.
• Direct CNC transfer for optimised production.

With these enhanced features, our Angled Clamping option lets you design your projects more efficiently, precisely, and flexibly than ever before. Whether you need a standard solution or a bespoke design, enjoy the benefits of greater automation and customisation that take your processes to the next level.
